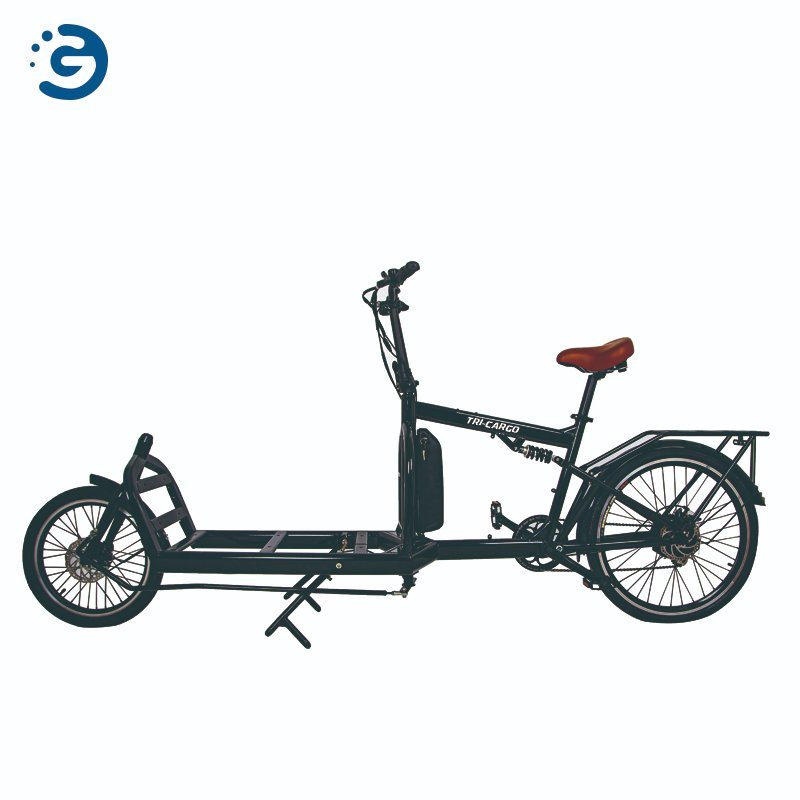

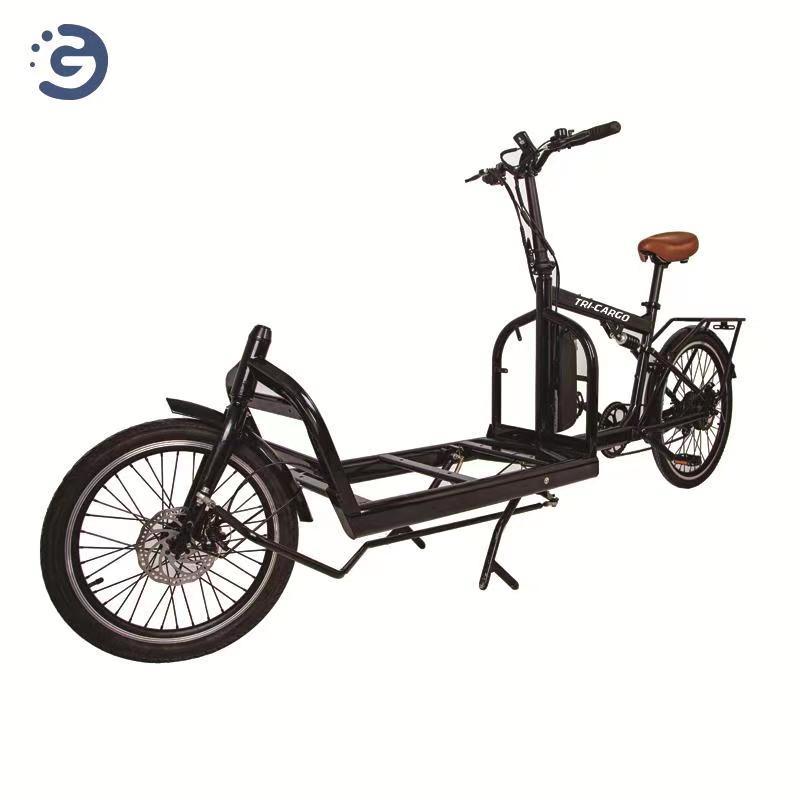

250W~750W Motor Electric Cargo Family Bike 48V 17.5Ah Front Wood Box For Sale
Electric Bike with basket for kids Electric cargo bike for takeaway
Electric Bike with basket for kids Electric cargo bike for takeaway
--Long range for takeaway bike
-- Take baby for shopping
SPECIFICATIONS
| Performance | Max.speed | 25-35km/h(EU) |
| Range | About 50-70KMS | |
| Max load | 300KGS | |
| Charge time | 5-6H | |
| Electric system | Motor | Brushless Hub Motor Max prower 250W |
| Display | LCD -S700 | |
| Battery | 468Wh Lithium battery,(Samsung) 48V 11.6AH | |
| PAS | 1:1 intelligent pedal assistant system,12M | |
| Controller | 36V 250W intelligent PAS, brushless | |
| Charger | 100V-230V, 2 amps smart charger,Charge time:5-6hours | |
| Main components | Frame | Steel |
| Tyres | F.wheel 20"x1.95 (kenda) | |
| R.wheel 26"x1.95(kenda) | ||
| Rim | DOUBLE DECK Al alloy | |
| Front fork | Steel Fixed | |
| Front brake | Hydraulic Disc Brake (TEKTRO) | |
| Rear brake | Hydraulic Disc Brake (TEKTRO) | |
| Speed gears | SHIMANO 7 speed gears /TZ21 | |
| Derailleur | SHIMANO ARDTY300D | |
| SHIMANO | SHIMANO Shift ASLTX50R7CT | |
| Handle bar | Al alloy /L640mm | |
| Brake lever | Al alloy, | |
| Chain wheel/Brace | 42 Teeths | |
| Stem | AL-Alloy (Zoom) /Folding | |
| mudapron | Steel | |
| Seat post | Al-alloy 27.2*300L | |
| Pedal | Bigger Size Al alloy and with reflector | |
| F-wheel hub | AL-alloy | |
| Weight | N.W | 43.0KGS |
| G.W | 48.0KGS | |
| Dimension | Full Size | 2550x50x770mm |
MORE PRODUCTS:
Our products are certificated by:
Electric bicycles (bikes) : CE, UL, EN14764, EN15194, EPAC
Electric scooters: CE, UL, EEC & COC
Electric motorcycles: DOT, CE, EEC, COC
Factory: CCC, ISO9001:2012, SGS, TUV
Choose to work with us is more professional and help you to clear customs at your own country without problems.
We provide all necessary products certificates, exporting documents, shipping documents too.
Welcome to inquiry and work with us.
Factory Picture:
FAQ:
Q1. PACKING TERMS
A: Generally, we pack our goods in carton with foams inside. We could provide iron frame as your require.
Q2. PAYMENT TERMS
A: Sample payment in advance. Large order:T/T 30% as deposit, and 70% balance before delivery.
A: Sample payment in advance. Large order:T/T 30% as deposit, and 70% balance before delivery.
Q3. DELIVERY TERMS
A: EXW, FOB, CFR, CIF,DDP
A: EXW, FOB, CFR, CIF,DDP
Q4. LEAD TIME
A: Generally, it will take 15-35 working days after payment arrives. The specific delivery time depends on the items and the qty.But the exact delivery time might be different for different orders or at different time.
A: Generally, it will take 15-35 working days after payment arrives. The specific delivery time depends on the items and the qty.But the exact delivery time might be different for different orders or at different time.
Q5. SAMPLE AVAILABLE
A: Sample is available and more details need to confirm with our Customer service
A: Sample is available and more details need to confirm with our Customer service
Q6. Do you test all your goods before delivery?
A: Yes ,we have 3-steps test as well as road test before delivery.
A: Yes ,we have 3-steps test as well as road test before delivery.
Q7: WARRANTY
A: 1- year quality warranty for Frame,Battery,Controller,Charger and Motor.
We offer different warranty time for different components,please contact us for details.
Q8: HOW TO REGISTER IN LOCAL INSTITUTION .
A:Our certification documents are complete and available for your registration.
A: 1- year quality warranty for Frame,Battery,Controller,Charger and Motor.
We offer different warranty time for different components,please contact us for details.
Q8: HOW TO REGISTER IN LOCAL INSTITUTION .
A:Our certification documents are complete and available for your registration.
Q9: Can I mix different models in one container?
A: Yes, different models can be mixed up in one container.
A: Yes, different models can be mixed up in one container.
